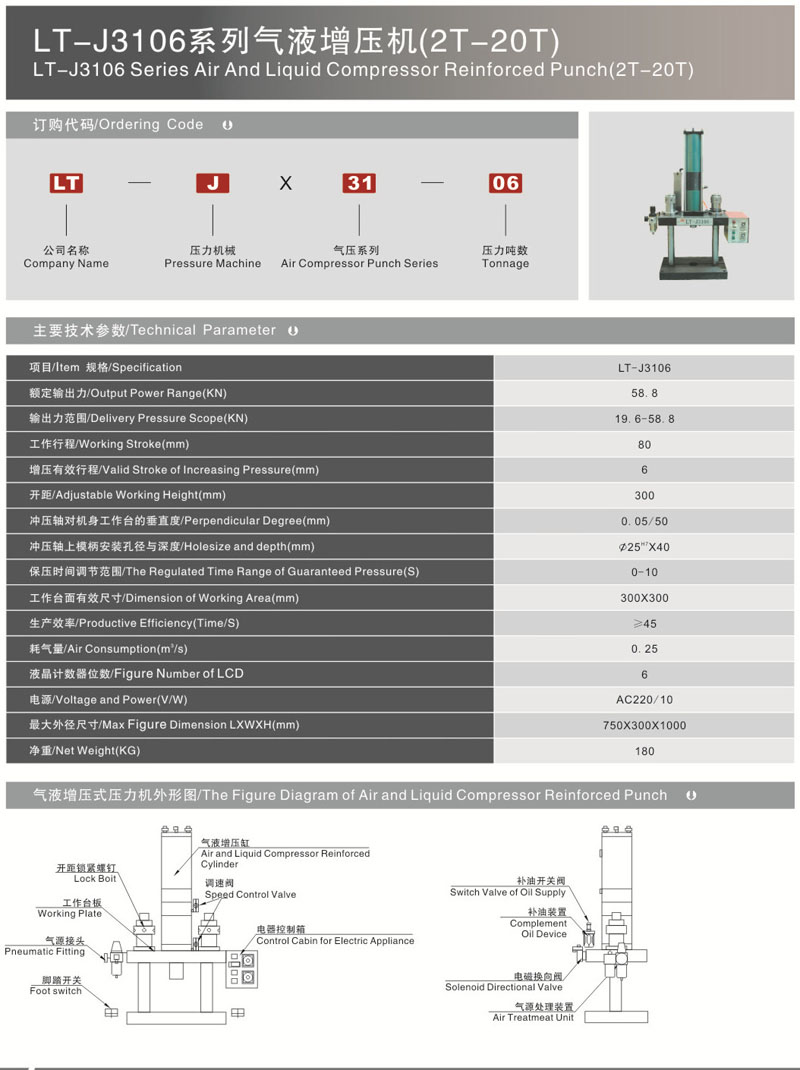

主要技术参数/Technical Parameter
项目/Item 规格/Specification	LT-J3106
额定输出力/Rated Output Power(KN)	58.8
输出力范围/Delivery Pressure Scope(KN)	19.6-58.8
工作行程/Working Stroke(mm)	80
增压有效行程/Valid Stroke of Increasing Pressure(mm)	6
开距/Adjustable Working Height(mm)	300
冲压轴对机身工作台的垂直度/Perpendicular Degree(mm)	0.05/50
冲压轴上模柄安装孔径与深度/Holesiza and depth(mm)	Φ25H7*40
保压时间调节范围/The Regulated Time Range of Guaranteed Pressure(S)	0-10
工作台面有效尺寸/Dimension of Working Area(mm)	300*300
生产效率/Productive Efficency(Time/Min)	≥45
耗气量/Air Consumption(m3/S)	0.25
液晶计数器位数/Figure Number  of  LCD	6
电源/Voltage and Power(v/w)	AC220/10
最大外径尺寸/Max Figure Dimension LXWXH(mm)	750*300*1000
净重/Net Weight(KG)	180
