产品展示 |
|
 |
|
|

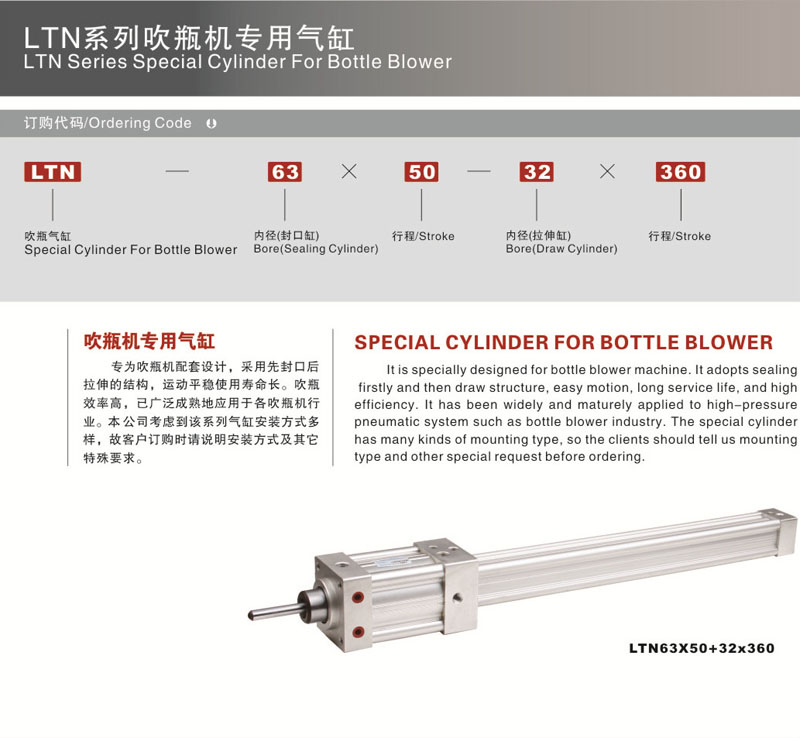

【LTN吹瓶机气缸系列】 |
|
|
规格/Specification |
|
缸径/Cylinder Bore(mm)(封口缸/Sealing Cylinder) |
50-250 |
|
行程范围/Stroke Range(mm) |
30-100 |
|
缸径/Cylinder Bore(mm)(拉伸缸/Draw Cylinder) |
32 |
40 |
50 |
63 |
80 |
100 |
|
行程范围/Stroke Range(mm) |
100-1000 |
|
工作压力/Working Pressure Range(Moa) |
0.1-0.9 |
|
保证耐压力/Ensured PressureResistance(Mpa) |
1.5 |
|
使用温度范围/Operating Temperature Range(℃) |
-5~70 |
|
使用速度范围/Operating Speed Range(mm/s) |
30-800 | |
|
|
|
|
