产品展示 |
|
 |
|
|

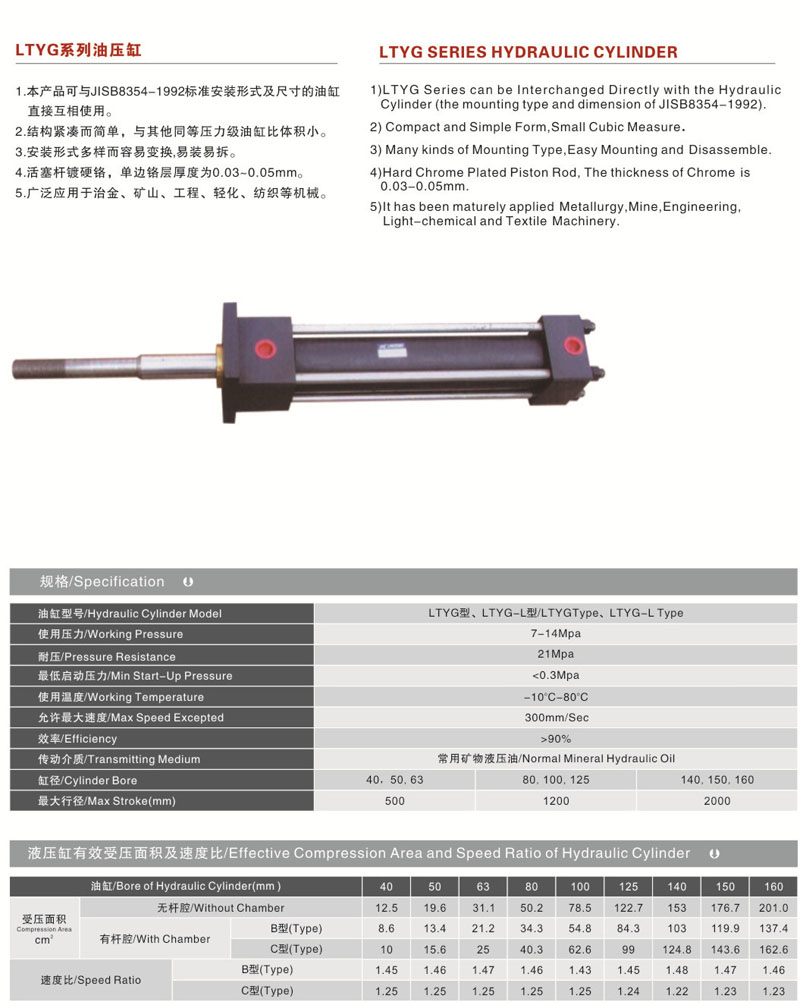

【LTYG油缸系列】 |
|
|
规格/Specification |
|
油缸型号/Hydraulic Cylinder Model |
LTYG型、LTYG-L型/LTYG Type、LTYG-L Type |
|
使用压力/Working Pressure |
7-14Mpa |
|
耐力/Pressure Resistance |
21Mpa |
|
最低启动压力/Min Start-Up Pressure |
＜0.3Mpa |
|
使用温度/Working Temperature |
-10℃-80℃ |
|
允许最大速度/Max Speed Excepted |
300mm/Sec |
|
效率/Efficiency |
＞90% |
|
传动介质/Transmitting Medium |
常用矿物液压油/Namal Mineral Hydraulic Oil |
|
缸径/Cylinder Bore |
40,50,63 |
80,100,125 |
140,150,160 |
|
最大行径/Max Stroke(mm) |
500 |
1200 |
2000 |
 ]
|
规格/Specification |
|
油缸型号/Hydraulic Cylinder Model |
LTYG型、LTYG-L型/LTYG Type、LTYG-L Type |
|
使用压力/Working Pressure |
7-14Mpa |
|
耐力/Pressure Resistance |
21Mpa |
|
最低启动压力/Min Start-Up Pressure |
＜0.3Mpa |
|
使用温度/Working Temperature |
-10℃-80℃ |
|
允许最大速度/Max Speed Excepted |
300mm/Sec |
|
效率/Efficiency |
＞90% |
|
传动介质/Transmitting Medium |
常用矿物液压油/Namal Mineral Hydraulic Oil |
|
缸径/Cylinder Bore |
40,50,63 |
80,100,125 |
140,150,160 |
|
最大行径/Max Stroke(mm) |
500 |
1200 |
2000 |
|
|
|
|
|
