产品展示 |
|
 |
|
|

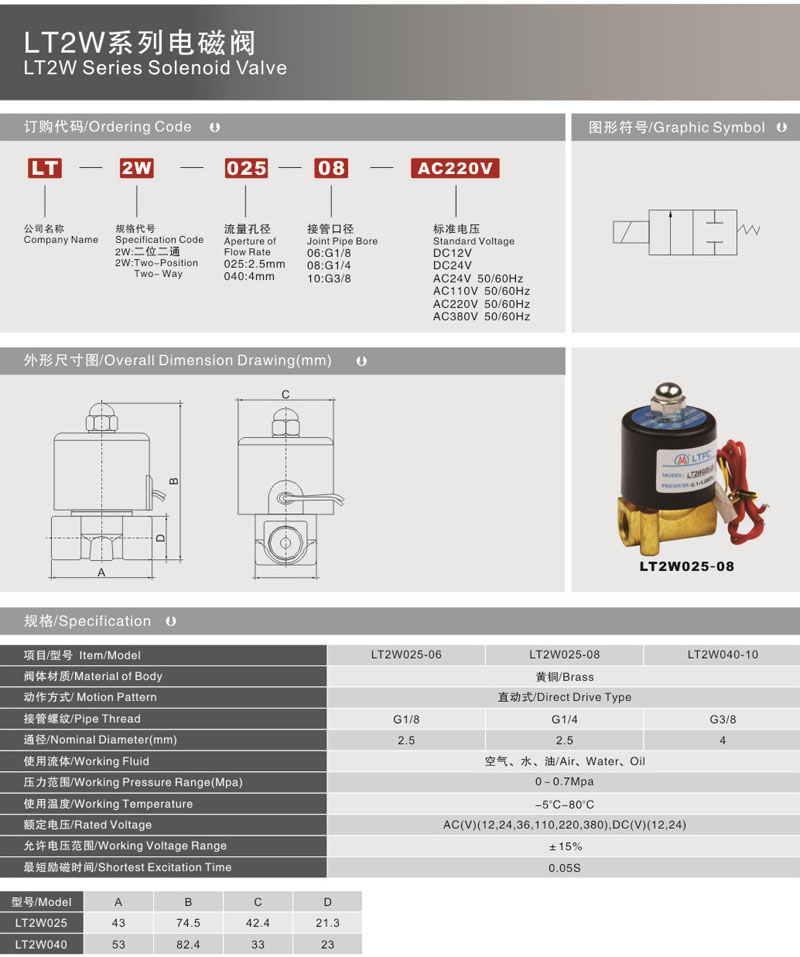

【LT2W系列电磁阀】 |
|
| LT2W025-08系列电磁阀 |
|
规格/Specification |
|
项目/型号Item/Model |
LT2W025-06 |
LT2W025-08 |
LT2W040-10 |
|
阀体材质/Material of Body |
黄铜/Brass |
|
动作方式/Motion Pattern |
直接式/Direct Drive Type |
|
接管螺纹/Pipe Thread |
G1/8 |
G1/4 |
G3/8 |
|
通经/Nominal Diameter(mm) |
2.5 |
2.5 |
4 |
|
使用流体/Working Fluid |
空气、水、油/Air、Water、Oil |
|
压力范围/Working Pressure Range(Mpa) |
0~0.7Mpa |
|
使用温度/Working Temperature |
-5℃-80℃ |
|
额定电压/Rated Voltage |
AC(V)(12,24,36,110,220,380),DC(V)(12,24) |
|
允许电压范围/Working Voltage Range |
±15% |
|
最短励磁时间/Shortest Excitation Time |
0.05S | |
|
|
|
|
