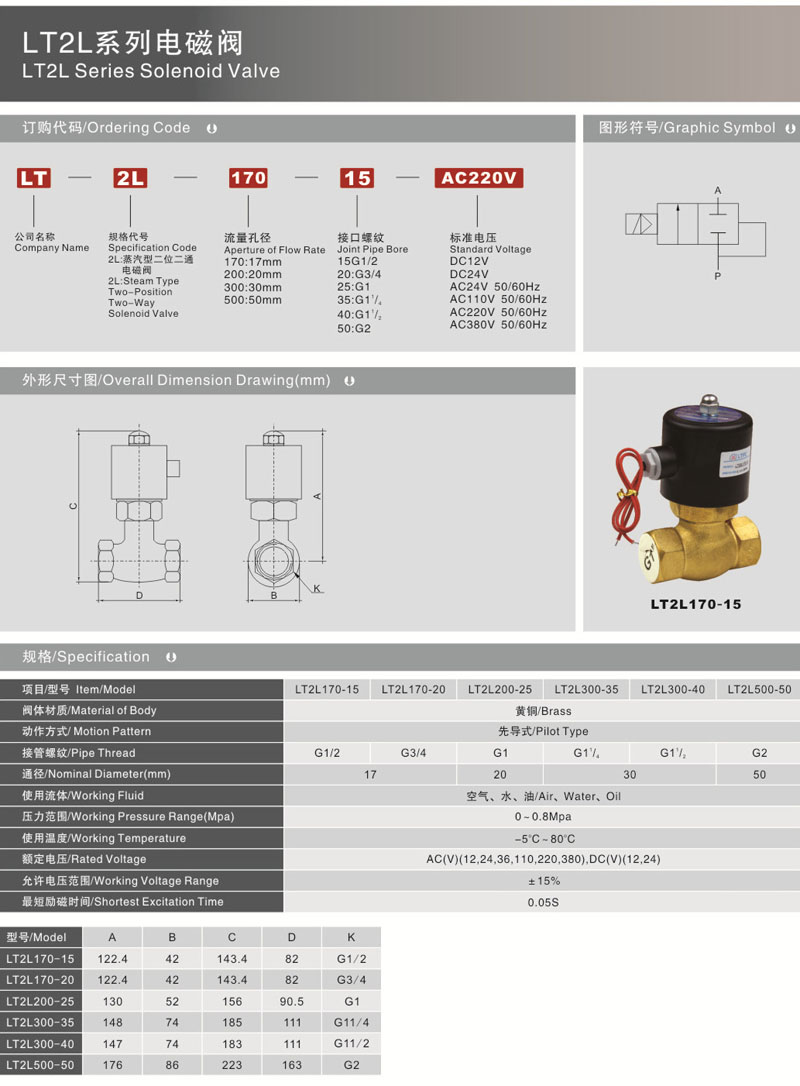

【LT2L系列电磁阀】 |
|
| LT2L系列电磁阀 |
|
规格/Specification |
|
项目/型号Item/Model |
LT2L170-15 |
LT2L170-20 |
LT2L200-25 |
LT2L300-35 |
LT2L300-40 |
LT2L500-50 |
|
阀体材质/Material of Body |
黄铜/Brass |
|
动作方式/Motion Pattern |
先导式/ Pilot Type |
|
接管螺纹/Pipe Thread |
G1/2 |
G3/4 |
G1 |
G11/4 |
G11/2 |
G2 |
|
通经/Nominal Diameter(mm) |
17 |
20 |
30 |
50 |
|
使用流体/Working Fluid |
空气、水、油/Air、Water、Oil |
|
压力范围/Working Pressure Range(Mpa) |
0~0.8Mpa |
|
使用温度/Working Temperature |
-5℃-80℃ |
|
额定电压/Rated Voltage |
AC(V)(12,24,36,110,220,380),DC(V)(12,24) |
|
允许电压范围/Working Voltage Range |
±15% |
|
最短励磁时间/Shortest Excitation Time |
0.05S | |
|
|
|
|
