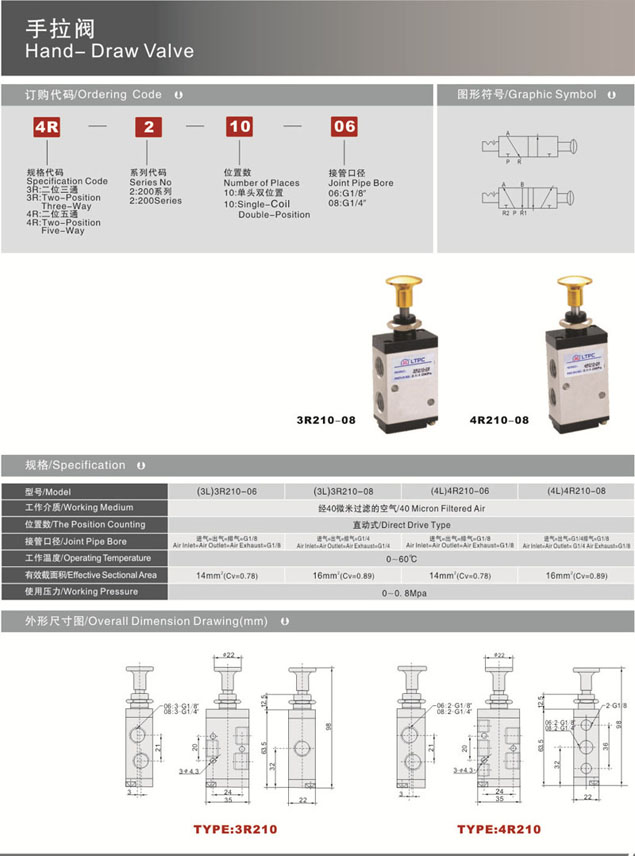

规格/Specification
项目/型号Item/Model			(3L)3R210-06	(3L)3R210-08	(4L)4R210-06		(4L)4R210-08
工作介质/Working Medium				经40微米过滤的空气/40 Micron Filtered Air
动作方式/Operating method				直动式/Direct Drive Type
接管口径/Joint Pipe Bore	进气=出气=排气=G1/8 Air Inlet= Air Outlet=Air Exaust=G1/8			进气=出气=G1/4排气=G1/8Air Inlet= Air Outlet=G1/4 Air Exaust =G1/8		进气=出气=排气=G1/8 Air Inlet= Air Outlet=Air Exaust=G1/8			进气=出气=G1/4排气=G1/8Air Inlet= Air Outlet=G1/4 Air Exaust =G1/8
工作温度/Operating  Temperature				0~60℃
有效截面积/Effective Sectional Area		14mm2(Cv=0.78)		16mm2(Cv=0.89)		14mm2(Cv=0.78)		16mm2(Cv=0.89)
使用压力/Working Pressure				0~0.8Mpa
