【LT22系列活塞式电磁阀】 |
|

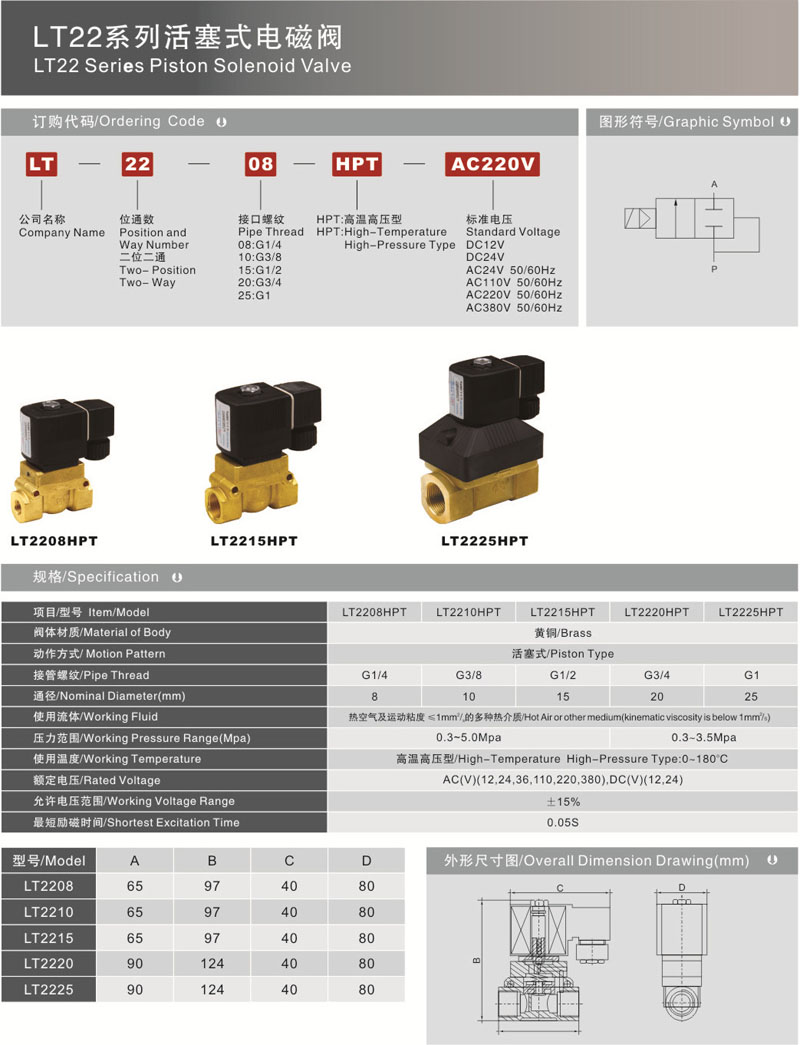

| 灵通22系列活塞式电磁阀 |
|
规格/Specification |
|
项目/型号Item/Model |
LT2208HPT |
LT2210HPT |
LT2215HPT |
LT2220HPT |
LT2225HPT |
|
阀体材质/Material of Body |
黄铜/Brass |
|
动作方式/Motion Pattern |
活塞式/Piston Type |
|
接管螺纹/Pipe Thread |
G1/4 |
G3/8 |
G1/2 |
G3/4 |
G1 |
|
通经/Nominal Diameter(mm) |
8 |
10 |
15 |
20 |
25 |
|
使用流体/Working Fluid |
热空气及运动粘度≤1mm2/s的多种热介质/Hot Air or other medium(kinematic viscosity is below 1mm2/s) |
|
压力范围/Working Pressure Range(Mpa) |
0.3~5.0Mpa |
0.3~3.5Mpa |
|
使用温度/Working Temperature |
高温高压型/High-Temperature Type Type;0-180℃ |
|
额定电压/Rated Voltage |
AC(V)(12,24,36,110,220,380),DC(V)(12,24) |
|
允许电压范围/Working Voltage Range |
±15% |
|
最短励磁时间/Shortest Excitation Time |
0.05S | |
|
|
|
|
