产品展示 |
|
 |
|
|

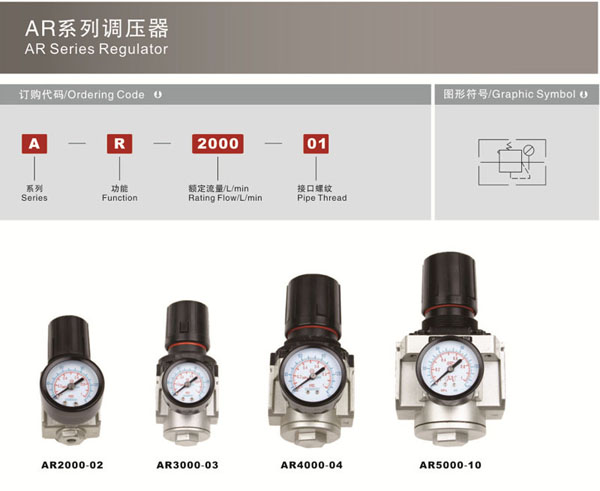

【AR系列调压器】 |
|
|
规格/Specification |
|
项目/型号Item/Model |
AR2000 |
AR3000 |
AR4000 |
AR5000 |
|
接口螺纹/Pipe Thread |
G1/8、G1/4 |
G1/4、G3/8 |
G3/8、G1/2、G3/4 |
G3/4、G1 |
|
@额定流量/Rating Flow(L /min) |
550 |
2500 |
6000 |
8000 |
|
最高使用压力/Max Working Pressure(Mpa) |
1.0 |
|
保证耐压力/Ensured Pressure Resistance(Mpa) |
1.5 |
|
环境及流体温度/Environment&Fluid Temperature |
-5~60℃ |
|
调压范围/Adjustable Pressure Range(Mpa) |
0.05~0.85 |
|
压力表/Gauge |
G36-10-01 |
G46-10-02 | |
|
|
|
|
