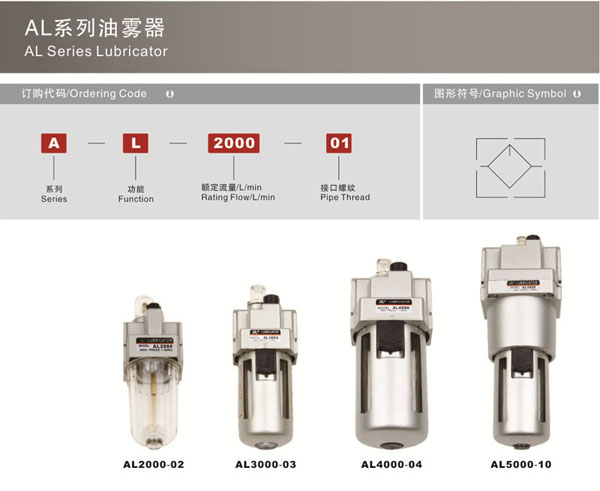

【AL系列油雾器】 |
|
|
规格/Specification |
|
项目/型号Item/Model |
AL2000 |
AL3000 |
AL4000 |
AL5000 |
|
接口螺纹/Pipe Thread |
G1/8、G1/4 |
G1/4、G3/8 |
G3/8、G1/2、G3/4 |
G3/4、G1 |
|
@额定流量/Rating Flow(L /min) |
800 |
1700 |
5000 |
7000 |
|
最高使用压力/Max Working Pressure(Mpa) |
1.0 |
|
保证耐压力/Ensured Pressure Resistance(Mpa) |
1.5 |
|
环境及流体温度/Environment&Fluid Temperature |
-5~60℃ |
|
油滴最小流量/Min Flow of Oil Drop(L/Min) |
15 |
30-40 |
40-50 |
190 |
|
建议用油/Recommended Oil |
透平1号油ISOVG32/TURBINE NO.1 OIL ISOVG32 |
|
保护杯罩/Protective Cover |
无/NO |
有/YES | |
|
|
|
|
